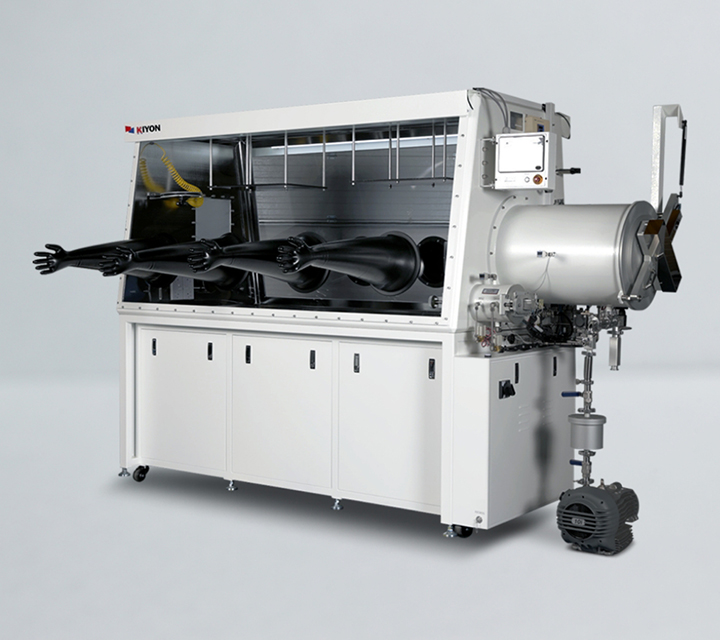

glovebox
kk-021ad
Glovebox is designed to provide a hermetically
sealed & highly customized working space
under a very tightly controlled.
- 4 Person NUMBER OF USERS
- 8 EA GLOVE PORTS
- Less than 1 PPM OXYGEN & MOISTURE
Basic composition
characteristic
- Less than 1PPM of Oxygen and Moisture concentration level inside
design
- Stainless steel design with polycarbonate window
- Modular box design
configuration
- Large antechamber with sliding tray
- Mini-Antechamber
- Embedded inert gas purification system
- Vacuum pump
- High efficiency box filters
- Casters and leveling feet
- Glovebox is designed to provide a hermetically sealed&highly customized working space under a very tightly controlled.
- Glovebox expansion features include additional antechambers for flow processes, cold storage freezers,
process vacuum ovens and furnaces and full line of accessories.
Specification
| Basic Composition | Size | 2,200(L) x 900(H) x 1,200(D) mm |
|---|---|---|
| Material | SUS304 | |
| Windows | Poly-Carbonate PC or Safety Glass | |
| Glove | Butyl Rubber 4 Pair | |
| External Light | 4ea(LED) | |
| Service Port | KF(NW40): 2ea | |
| Leak Test | 0.05 vol%/hr According to ISO 10648-2 | |
| Antechamber | Size | 390 x 600 mm |
| Vacuum Capacity | 1 x 10-3 torr | |
| Merterial | sus 304 | |
| Mini-Antechamber | Size | 150 x 290 mm |
| Purifier System | Purifity Level | Less than 1 ppm O2 and H2O |
| Catalyst | Oxygen Catalyst and Modecular sieve | |
| PLC | Automatic PLC control | |
| Control Panel | 7˚Full Color Touch Screen | |
| Purifier Regeneration | Auto Regeneration programmed on PLC | |
| Blower Speed Control | Max. 63 CFM (1.78m3/min) | |
| Vacuum Pump | 180 ℓ/min | |
| Stand | Size | 2,200(L) × 936(H) × 1,200(D) mm |
